Downloading Fluke LinkWare Live Data into LabelFlex

Cable certification testing generates a definitive set of identifiers for every link in a project. Those same identifiers need to appear on the physical labels attached to patch panels, cables, and outlets. When contractors rekey that data into a separate labeling system, errors creep in: a dash becomes a period, a zero becomes the letter O, or a cable ID gets transposed. On a 500-link project, even a 2% error rate means 10 labels that do not match test reports.

That mismatch causes real problems. During commissioning, engineers cross-referencing labels against LinkWare™ Live reports flag every discrepancy. On warranty claims, Belden's extended and lifetime warranty tiers require documentation showing that all components are properly identified and traceable. A label that does not match the certification record is a gap in that chain of evidence.

The fix is not to type more carefully. It is to stop retyping altogether.

The Fluke Networks® LinkWare™ Live integration is available in LabelFlex® Advanced and Professional. LabelFlex® is Windows desktop software, so you will need a PC with an internet connection and a LinkWare™ Live account containing at least one project with uploaded test results.

Step 1: Choose your label template

Open LabelFlex® and select the Belden label template that matches your hardware. For example, if you are labeling REVConnect patch panels, choose the REVConnect Patch Panel template (which maps to AX107527 label sheets). The template sets the label dimensions, print area, and port count automatically.

Step 2: Connect to LinkWare Live

From the data import menu, select the LinkWare™ Live option. LabelFlex® will prompt you to sign into your Fluke Networks® account. Once authenticated, the software displays your available projects, so you can select the one containing the cable IDs you need.

Step 3: Select and import cable IDs

Browse the project data and select the cable IDs and equipment properties you want to import. LabelFlex® pulls this information directly from the LinkWare™ Live cloud, populating the label fields with the exact identifiers from your test records. There is no copying, no pasting, and no retyping.

Step 4: Preview and print

Review the populated labels in the live preview. Make any adjustments to formatting, then print using your standard office laser printer. The labels come out with identifiers that match your certification records character for character, because they came from the same source.

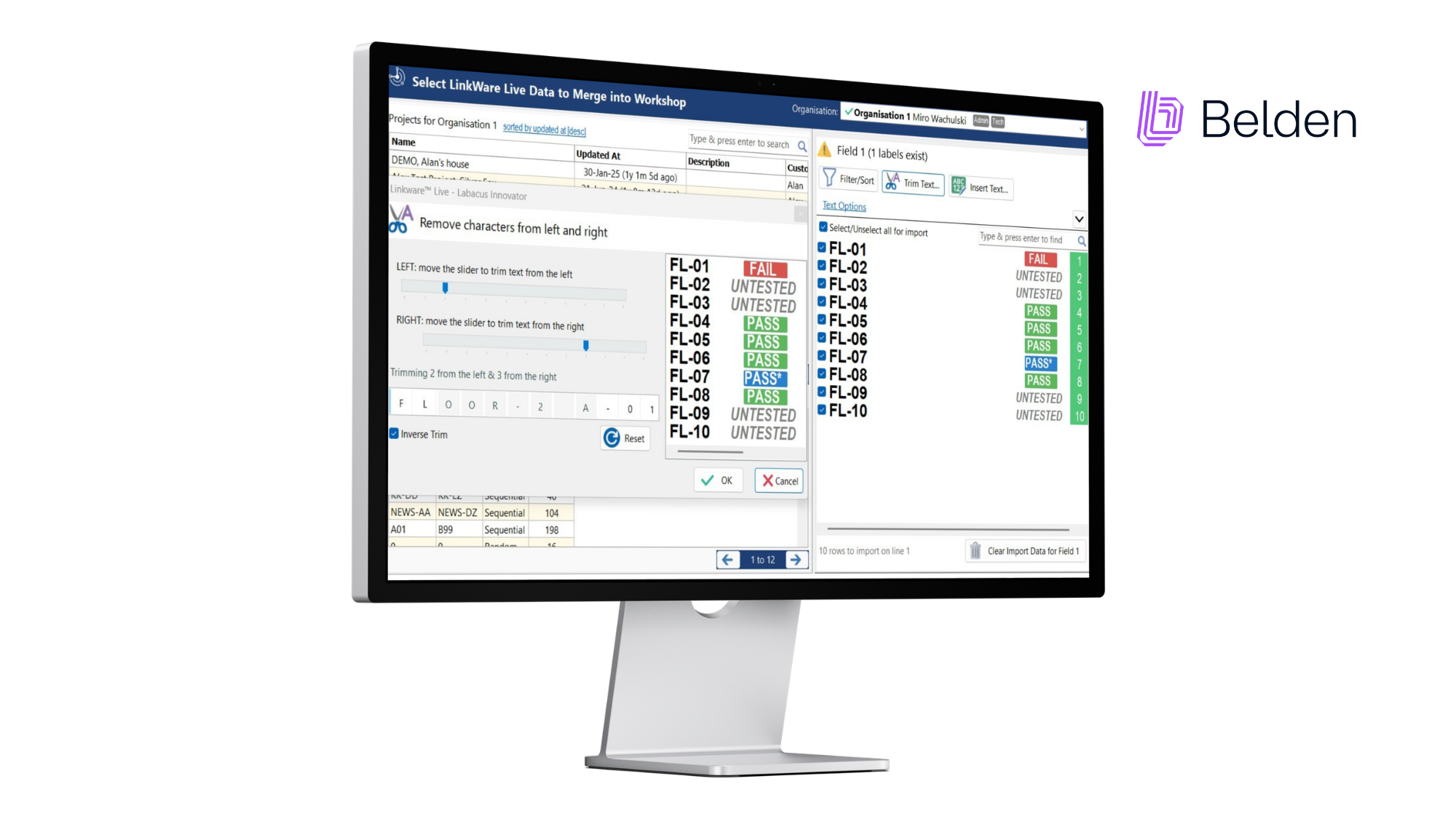

The Trim Function: cable IDs to panel labels

Cable IDs often follow a full-path naming scheme, something like MDF-B-03-024. That works on a cable wrap label where there is room for a long string. On a patch panel label, you may only need the last segment, or a shortened version, to identify the port. The Trim Function in LabelFlex® shortens and prints identifiers for patch panel labels using the same data source as the cable IDs. This means you can produce cable labels and panel labels from a single LinkWare™ Live import, with the panel labels automatically trimmed to fit the smaller print area, all without creating a second data file or editing the IDs by hand.

Advanced vs Professional for LinkWare Live

Both the Advanced and Professional tiers include LinkWare™ Live integration, but they differ in scope.

For most Belden contractors running standard cable certification projects, the Advanced tier covers the LinkWare™ Live integration they need. Professional adds value on large-scale data center jobs or projects requiring barcode-based asset tracking alongside certification labeling.

AEM TestPro: the other path in

If your team uses AEM TestPro testers instead of Fluke, LabelFlex® Advanced and Professional include a guided CSV workflow for TestPro data. Export your test results as a CSV from TestPro, then import them into LabelFlex® with straightforward field mapping. The end result is the same: labels that match your test records exactly, just through a different data path.

Do I need a Fluke Networks account to use the LabelFlex LinkWare Live integration?

Yes. You need an active LinkWare™ Live account with at least one project containing uploaded test results. LabelFlex® connects to the LinkWare™ Live cloud through your Fluke Networks® credentials, pulling cable IDs and equipment properties directly from your project data.

Which Fluke testers work with LinkWare Live?

The Versiv family of cable certification testers, including the DSX CableAnalyzer, CertiFiber Pro, and OptiFiber Pro, integrate directly with LinkWare™ Live. Test results are uploaded from the tester to the cloud over Wi-Fi, where LabelFlex® can access them.

Can I import data from LinkWare Live into the free version of LabelFlex?

No. The LinkWare™ Live integration requires LabelFlex® Advanced or Professional. LabelFlex® Lite (Free) supports copy-and-paste from spreadsheets and sequential numbering, but does not include cloud data import.

What if my cable IDs are too long for patch panel labels?

Use the Trim Function. It shortens cable identifiers for patch panel labels while keeping the full-length version for cable wrap labels, all from the same imported data set. You do not need to create a second file or edit the IDs manually.

Does LabelFlex work on Mac or in a browser?

No. LabelFlex® is Windows desktop software only. You will need a Windows PC to run the software and connect to LinkWare™ Live. There is no Mac or browser-based version.

How does the AEM TestPro integration differ from LinkWare Live?

The AEM TestPro workflow uses a CSV export from the TestPro tester, which you then import into LabelFlex® using a guided mapping process. The LinkWare™ Live integration is a direct cloud connection. Both produce the same outcome: labels that match certification records without manual rekeying.
